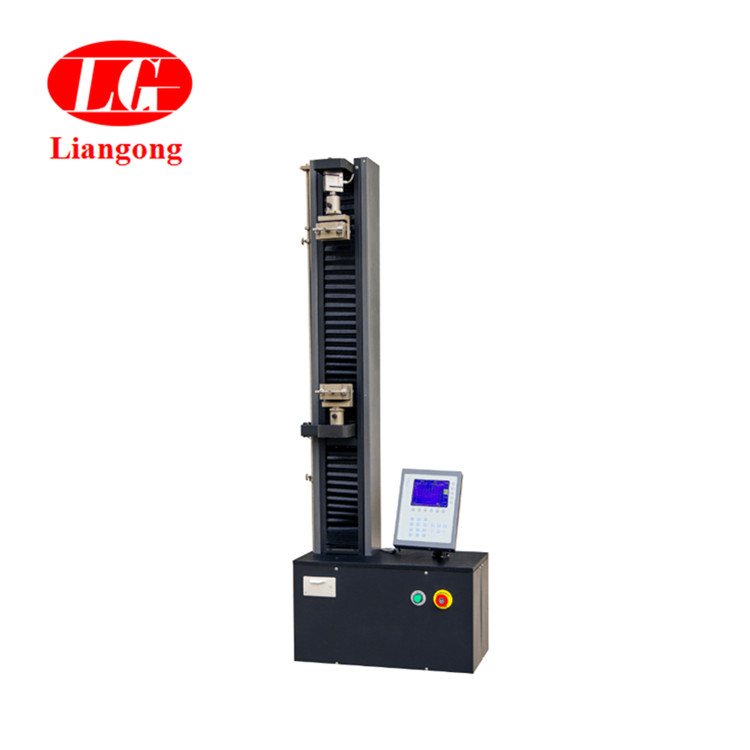

LDS-5 Digital Display Electronic Universal Testing Machine

1 Function and Usages

This series of electronic universal testing machines are widely used for the mechanical properties such as tensile, compression, bending, shearing, peeling and tearing test of woven bags, container bags, safety belts, rubber, plastics, textiles, wire and cable, composite materials, leather, waterproofing membranes, non-woven fabrics, geotextiles, paper and other non-metallic materials. And metal materials such as wire, metal foil, metal plate and metal bar,etc. Applicable to the quality supervision bureau, teaching and research, aerospace, steel and metallurgy, automotive, construction and building materials.

The word is enlarged and collected to make the display stable, high precision and convenient to use. High-precision synchronous belt wheel deceleration, featuring smooth transmission, low noise and long service life; large liquid crystal display can display tensile strength, elongation, maximum force value, deformation amount, etc., elegant appearance, easy to use, operation simple; with automatic overload protection.

2 Main Technical Index

2.1. Maximum test force: 5000N

2.2. Test machine grade: Level 1

2.3. Test force tolerance: within ±1% of the indicated value

2.4. Load measurement range: 2% to 100% FS of full scale

2.5. Displacement indication limit: within ±1% of the indicated value

2.6. Displacement resolution: 0.01mm

2.7. Displacement speed adjustment range: 0.01-500mm/min

2.8. Displacement rate control accuracy: within ±0.5% of the set value when the rate is ≥1mm/min

2.9. Effective tensile space distance: 0-700mm

2.10. Effective compression space distance: 0-700mm

2.11. Dimensions (length * width * height):  610*310*1800 (mm)

2.12. After the specimen is destroyed, the moving beam automatically stops moving (or automatically returns to the initial position)

2.13. With program control and mechanical two-stage limit protection

2.14. When the load exceeds the rated value of 3~5%, it will automatically stop

2.15. Power supply: 220V, 50Hz

2.16. Net weight of equipment: 110Kg
