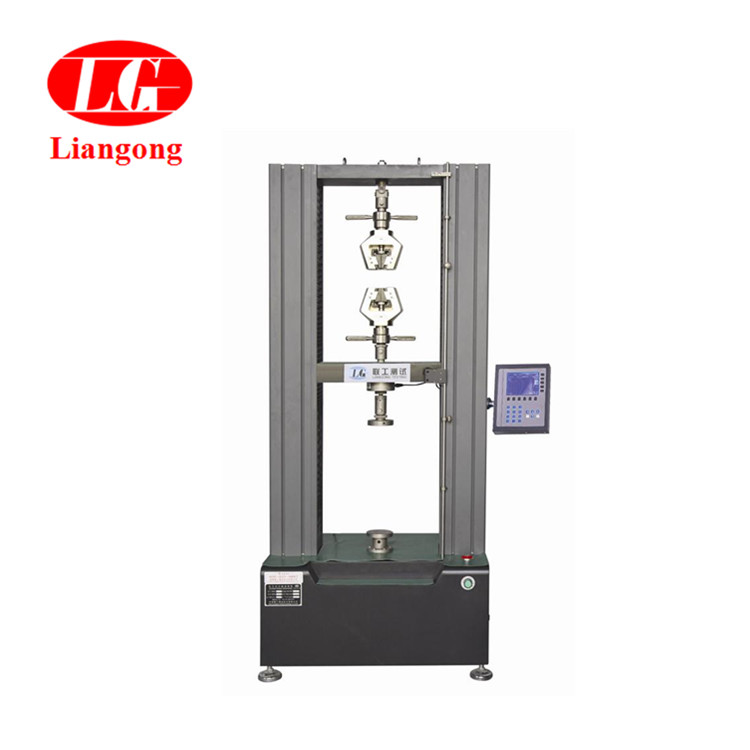

LDS-30 Digital Display Electronic Universal Testing Machine

1 Function and Usages

Using alternating current servo motor as a power source,  this testing machine adopts the single chip displaying the test data and test condition real-timely, which through the single chip realized the automatically control to test procedure. The machine can be of various metals, non-metallic and composite mechanical properties of materials testing and analysis, widely used in aerospace, petrochemical, machinery manufacturing,electric wires, cables, textiles, fibers, plastics, rubber, ceramics, food, medicine packaging, plastic pipes, plastic doors and windows, geotextile fabric, film, wood, paper, metal materials and manufacturing, this machine can automatically test the greatest value, the value of fracture strength and other test data.

2 Main Technical Index

2.1, Maximum test force: 30kN;

2.2, Test force measurement range: 2%-100% of full scale;

2.3, Accuracy of test force measurement: better than ±1% of the indicated value;

2.4, Displacement speed control: 0.01~500mm/min;

2.5, Effective test width: 440mm

2.6, Effective tensile stroke: 700mm (can be customized according to user needs)

2.7, Effective compression stroke: 700mm

2.8, Host dimensions (length * width * height): (800*610*1900) mm

2.9, Host weight: about 350Kg

2.10, power supply: 1-phase, 220V, 50Hz
