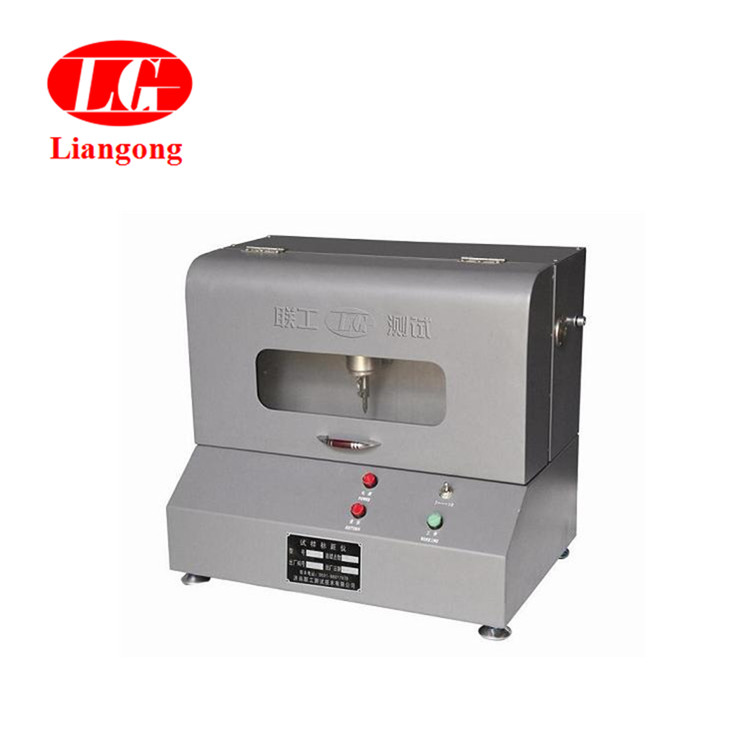

DB-30 Power-driven Gauge Length Meter (Striking Machine)

1. Overview

DB-30 Power-driven Tensile Specimen Gauge Length Meter (Power-driven Striking Point Machine) is the specialized equipment which is designed and made according to national standard GB/T228-2010. This machine adopts high-precision ball screw to locate correctly and uses import transducer collecting rotation signal to drive high-frequency electromagnet to strike point synchronously. Gauge length is correct, high-efficient and easy to operate. It’s the necessary matching equipment for labs.

2. Main technical parameters:

 2.1 Control methods: Power-driven

 2.2 Max. gauge length: 300mm

 2.3 Interval: 5mm or 10mm (adjustable)

 2.4 Striking point each time: single

 2.5 Power of motor: 10W

 2.6 Outline size (L*W*H): 460mm*315mm*450mm

 2.7 Weight: 45Kg
