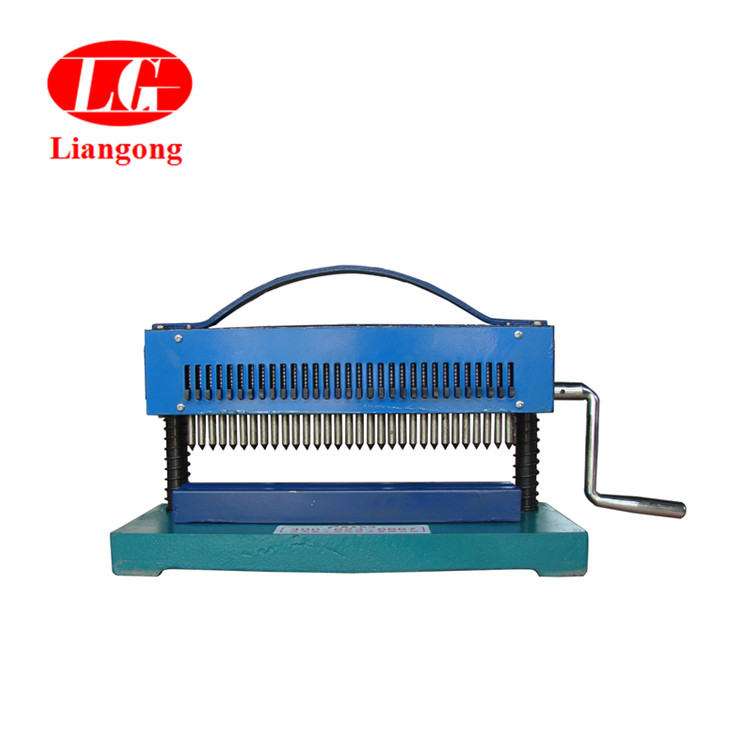

DX-400 Gauging Length Instrument of Tensile Specimen

1. Overview

DX-400 Manual Tensile Specimen Gauge Length Meter is the specialized equipment which is designed and made according to national standard GB/T228-2010. Gauge length is correct, high-efficient and easy to operate. It’s the necessary matching equipment for labs.

2. Main technical parameters:

 2.1 Control methods: Manual

 2.2 Max. gauge length: 400mm

 2.3 Interval: 10mm

 2.4 Striking point each time: 40

 2.5 Continuous points

 2.6 Outline size (L*W*H): 490mm*200mm*400mm

 2.7 Gross Weight: 30Kg
