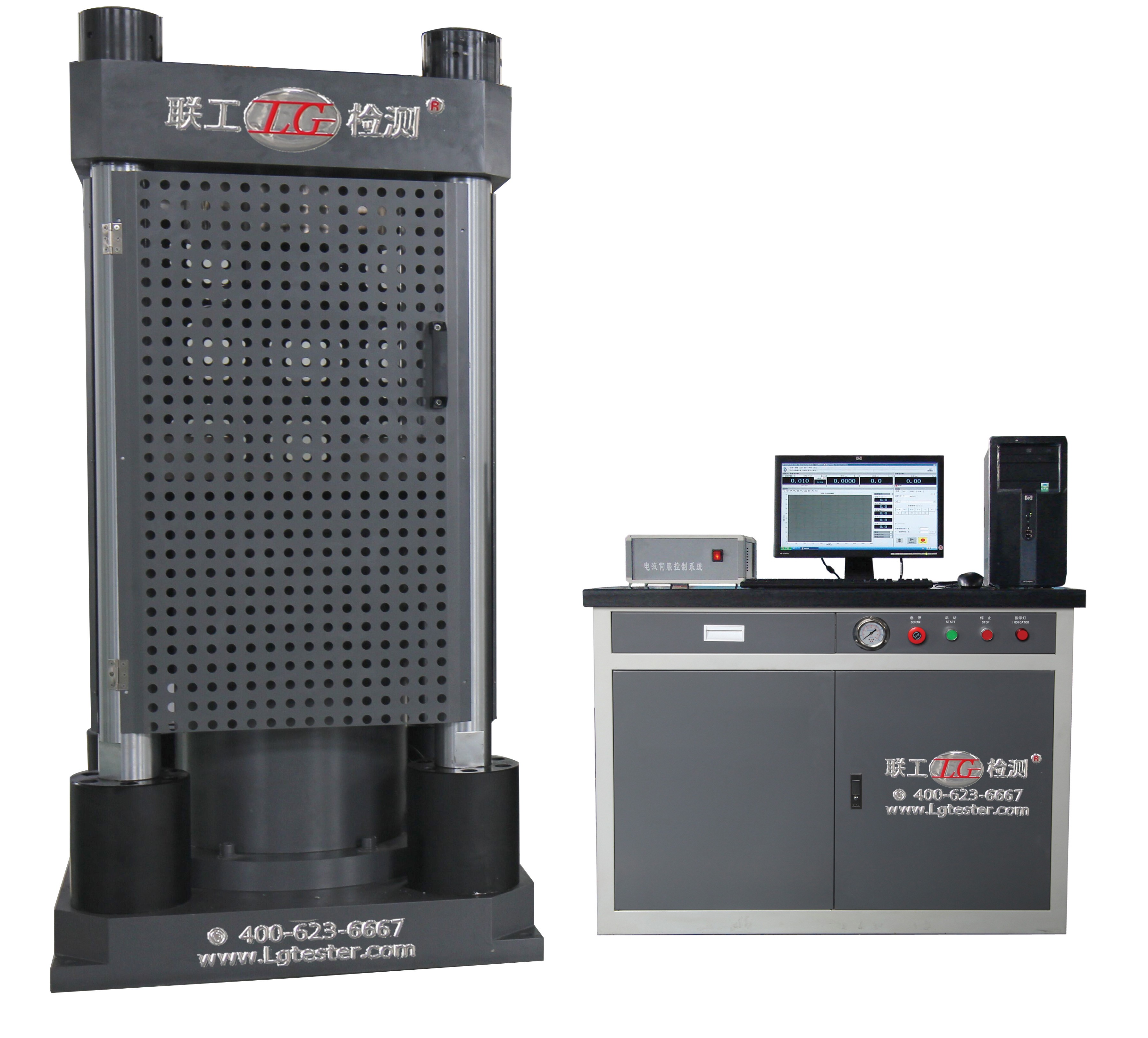

YAW-2000G Automatic Compression Testing Machine
This machine is mainly used for the compression strength test of brick, stone, cement, concrete, etc, also it can be used for other material’s compressive performance test after equip special fixture.
Lgtester@testermachine.com
+86 135 8311 3038
Product Description
Usage
This machine is mainly used for the compression strength test of brick, stone, cement, concrete, etc, also it can be used for other material’s compressive performance test after equip special fixture.
Main Technical Parameter
Max. Test Force: 2000kN
Accuracy: 1 grade
Test force Measurement Range: 2%-100%FS
Test Force indicating Error: ≤indicating value±0.5%
Test Force Resolution: 0.01kN
Compressive space: 220mm or customize
Upper Pressure Plate Size: φ300mm
Lower Pressure Plate Size: 400*400mm
Piston Diameter: φ320mm
Hydraulic Pump Pressure Pressure Rated: 25MPa
Piston Stroke: 400mm
Size: 760*760*1520mm
Host weight: About 1150kg
Power: 380V, 50Hz, 4kW
