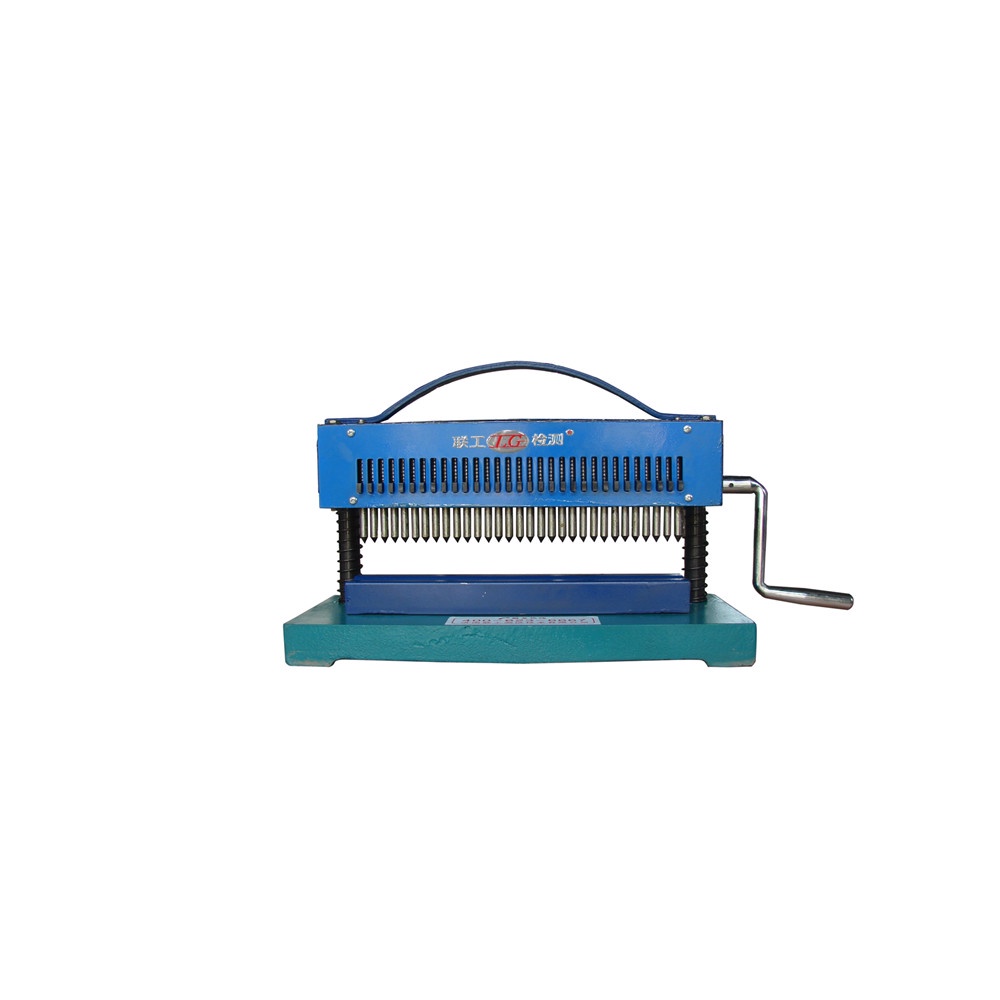

Tensile Specimen Gauge Length Meter is the specialized equipment which is designed and made according to national standard GB/T228-2010<Metal material room temperature tensile testing method. Gauge length is correct, high-efficient and easy to operate. It’s the necessary matching equipment for labs.
Model | DX-400 | DX-5 | DB-30 |
Control methods | Manual | Manual | Electric |
Max. gauge length | 400mm | 300mm | 300mm |
Point space | 10mm | 5mm or 10mm (adjustable) | 5mm or 10mm (adjustable) |
Striking point each time | Continuous points 40 | Single point 1 | Single point 1 |
Accuracy | +/-0.1mm | +/-0.1mm | +/-0.05mm |
Outline size | About 490*200*400mm | About 500*300*250mm | About 460*315*450mm |
Gross Weight | About 28Kg | About 22Kg | About 55Kg |
