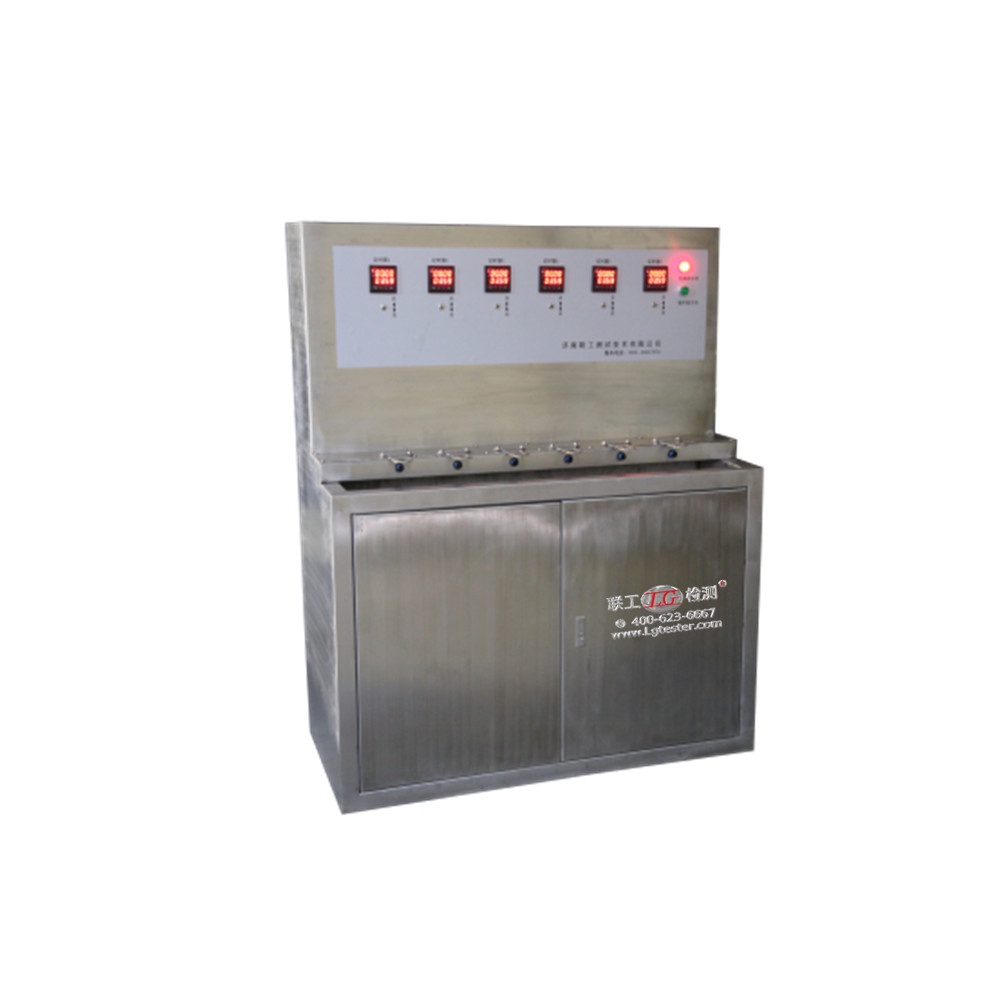

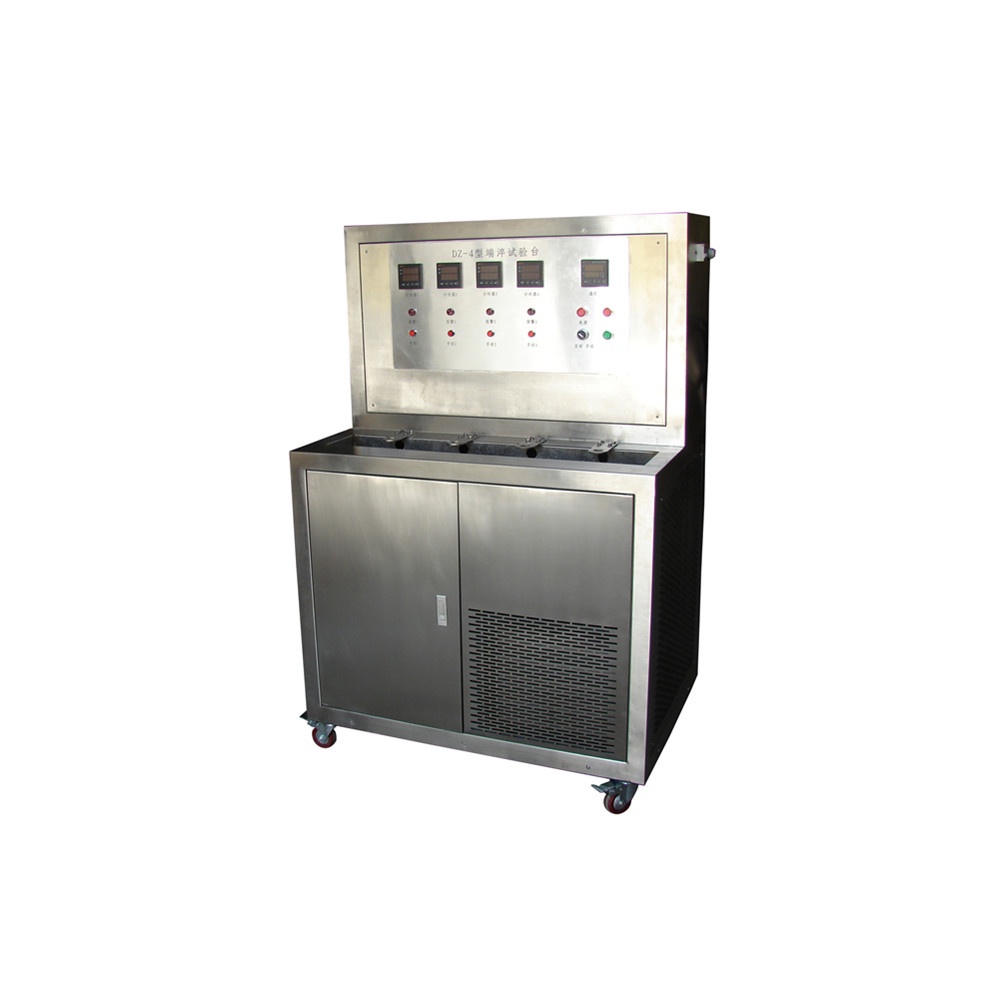

DZ seires Quenching Testing Bench

DZ series quenching testing bench is used for end-quenching test for labarotary materials. It is used for end-quenching test for laboratory materials. This machine is of elegant shape. The entire rack is bended and welded together using for stainless steel. The part of tanks of an independent welding is placed on the rack. The cooling water automatically cycles from low level to high level, the process of which is used of stainless steel submersible pump for completing, the high utilization of water, and no waste.

Lgtester@testermachine.com

+86 135 8311 3038

Product Description

Application and characteristics:

DZ series quenching testing bench according to the number of working station, can be devided into DZ-2, DZ-4, DZ-6. It is used for end-quenching test for laboratory materials. This machine is of elegant shape. The entire rack is bended and welded together using for stainless steel. The part of tanks of an independent welding is placed on the rack. The cooling water automatically cycles from low level to high level, the process of which is used of stainless steel submersible pump for completing, the high utilization of water, and no waste.

Technical parameter:

Model	DZ-2	DZ-4	DZ-6
Working station	2	4	6
The diameter of tap nozzle（mm）	φ12.5
The height of water column（mm）	65±5（adjustable）
The distance between the tap and the end of sample（mm）	12.5
Sample size（mm）	φ25×100
Water supply mode	Water feed by pump, auto-cycle.
Operating	Each station can be operated independently and separately.
Dimension （L×W×H）（mm）	600×610×1500	1000×550×1500	1200×610×1500
